Structured Cabling for Offices: CAT6 vs CAT6A and How to Plan It
CAT6 or CAT6A? A plain guide to planning, installing and testing office structured cabling in Dubai.
For most new office fit-outs, CAT6A is the better choice for structured cabling. CAT6 and CAT6A both carry 1 Gbps over a full 100 m channel, but only CAT6A is specified for 10GBASE-T to 100 m, while CAT6 manages it to about 55 m. CAT6A is thicker and needs more containment space, so plan it early.
Key takeaways
- Structured cabling means every desk, access point and device connects back to labelled patch panels in a rack, not to cables run as needs arise.
- CAT6 and CAT6A both support 1 Gbps to 100 m; only CAT6A supports 10GBASE-T over the full 100 m.
- Multi-gigabit Wi-Fi 6E and Wi-Fi 7 access points and higher-power PoE devices are the main reasons offices now choose CAT6A.
- Use fibre for backbone links between floors, separate rack rooms or runs beyond copper limits.
- Insist on certification test results for every link, plus labels and a port map, before you sign off the work.
What is structured cabling for offices, and how is it different from ad-hoc cabling?
Structured cabling is a planned, standards-based network cabling system where every outlet runs back to a patch panel in a central rack. Ad-hoc cabling is what happens when cables are added one at a time, wherever someone needs a connection.
Ad-hoc cabling usually works on day one. The problems arrive later: nobody knows which wall socket goes to which switch port, cables are too long or kinked, and adding a meeting room means another contractor and another run across the ceiling. A structured system is designed once, labelled, tested and documented, so moves and changes become a patching job in the rack rather than new cable work.
The main parts of an office cabling system
Most office systems follow the TIA-568 family of standards or the international ISO/IEC 11801 series. Both describe the same basic building blocks.
- Horizontal cabling: the permanent copper runs from each outlet to the patch panel.
- Backbone cabling: the links between racks, floors or telecom rooms, often fibre.
- Patch panels: where horizontal cables terminate in the rack, connected to switches with short patch cords.
- Racks and cabinets: the enclosure for patch panels, switches, firewall and cable management.
- Outlets: wall plates, floor boxes and ceiling points where devices plug in.
CAT6 vs CAT6A: what is the actual difference?
The practical difference is 10 Gbps distance. Both categories handle 1 Gbps to 100 m, but CAT6A is rated for 10GBASE-T across the full 100 m channel, while CAT6 is limited to about 55 m depending on crosstalk conditions.
The trade-off is physical. CAT6A cable is thicker and stiffer, so it fills trays and trunking faster, needs gentler bends and takes more care to terminate. For a small office that will never run anything faster than 1 Gbps to desks, CAT6 is still a sound choice. For a fit-out you expect to occupy for years, CAT6A avoids ripping out cable when access points and switches move to multi-gigabit speeds.
| Specification | CAT6 | CAT6A |
|---|---|---|
| Rated bandwidth | 250 MHz | 500 MHz |
| 1 Gbps (1000BASE-T) distance | 100 m | 100 m |
| 10 Gbps (10GBASE-T) distance | Up to about 55 m | 100 m |
| Maximum channel length | 100 m | 100 m |
| Cable size and flexibility | Thinner, easier to route | Thicker, stiffer, needs more containment space |
Why do Wi-Fi 6E, Wi-Fi 7 and PoE push offices toward CAT6A?
Modern access points need faster uplinks and more power than a desk PC, and both favour CAT6A. Many Wi-Fi 6E and Wi-Fi 7 access points ship with multi-gigabit Ethernet ports, and a single slow cable to the ceiling caps everyone connected to that access point.
Power over Ethernet adds heat. The IEEE 802.3bt standard allows much more power per port than earlier PoE, which suits access points, PTZ cameras and some screens. When large bundles of cables all carry power, the bundle warms up, and higher temperature increases signal loss. CAT6A's larger construction generally copes with this better, and good installers avoid tightly packed bundles in hot ceiling voids. If your Wi-Fi already struggles, our guide to why office Wi-Fi is slow covers the causes that cabling will not fix.
Do you need shielded cable?
Most offices do well with unshielded U/UTP cable. Shielded F/UTP cable, with an overall foil screen, makes sense near strong electrical noise such as lift motor rooms, plant rooms or heavy electrical equipment. Shielding only works if jacks, patch panels and the rack are properly bonded to earth end to end; a half-shielded system can cause more trouble than it solves.
When should an office use fibre instead of copper?
Use fibre for backbone links: between floors, between racks in different rooms, and for any run longer than copper allows. Copper remains the right choice from the rack to desks, access points and cameras.
Fibre is immune to electrical interference, carries high speeds over long distances and avoids earthing differences between floors in a tower. Multimode fibre suits most in-building backbone runs, while singlemode is used for longer distances or when you want the most headroom for future upgrades. A pair of fibre cores between racks, with spare cores installed at the same time, costs far less effort than pulling new fibre through a busy riser later.
How many network points does an office need?
Plan outlets from the furniture layout and the device list, not from a rough headcount. Every device that needs a reliable wired connection or PoE should have its own point, plus spare capacity for change.
Walk the floor plan room by room and list what will actually plug in. This is also the stage to agree rack location, power and cooling, which our new office IT checklist covers in more detail.
- Desks: at least two data points per desk position is a common starting point, even if most staff use Wi-Fi.
- Meeting rooms: a table or floor box plus points behind the screen and video conferencing bar.
- Access points: one ceiling point per planned access point, based on a coverage design.
- Printers and multifunction devices, reception, and any kiosk or display screen.
- CCTV cameras, access control readers and intercoms.
- Spare ports on patch panels and switches, and spare room in the rack.
What containment and approvals does office cabling need in Dubai towers?
Cables need a proper route, and in most Dubai towers any work in ceilings, risers or shared areas needs building management approval first. Sort both out before the fit-out programme is fixed.
Containment means the trays, baskets and trunking that carry and protect cable. Offices commonly use cable trays in the ceiling void, perimeter or skirting trunking along walls, and floor boxes where there is a raised access floor. Because CAT6A takes more space, size containment for it from the start.
Building management teams typically ask for method statements, drawings and contractor details, may restrict noisy or ceiling work to certain hours, and control access to risers and the main telecom room where du or e& lines arrive. Penetrations through fire-rated walls must be fire-stopped afterwards. Allow time for these approvals, as they often set the pace more than the cabling itself.
How should cabling be labelled, tested and certified?
Every link should be labelled at both ends and tested with a cable certifier, not just a continuity tester. The certification report is your proof the installation meets its category.
A continuity tester only confirms that the wires are connected in the right order. A certifier measures performance, including insertion loss, crosstalk, return loss and length, and records a pass or fail against CAT6 or CAT6A limits for each link. Those saved results matter when a device misbehaves months later, when a new tenant asks what is in the ceiling, and when a cable manufacturer's system warranty requires certified testing.
Labelling should follow a consistent scheme, such as one based on the TIA-606 administration standard, so outlet, patch panel port and port map all use the same reference.

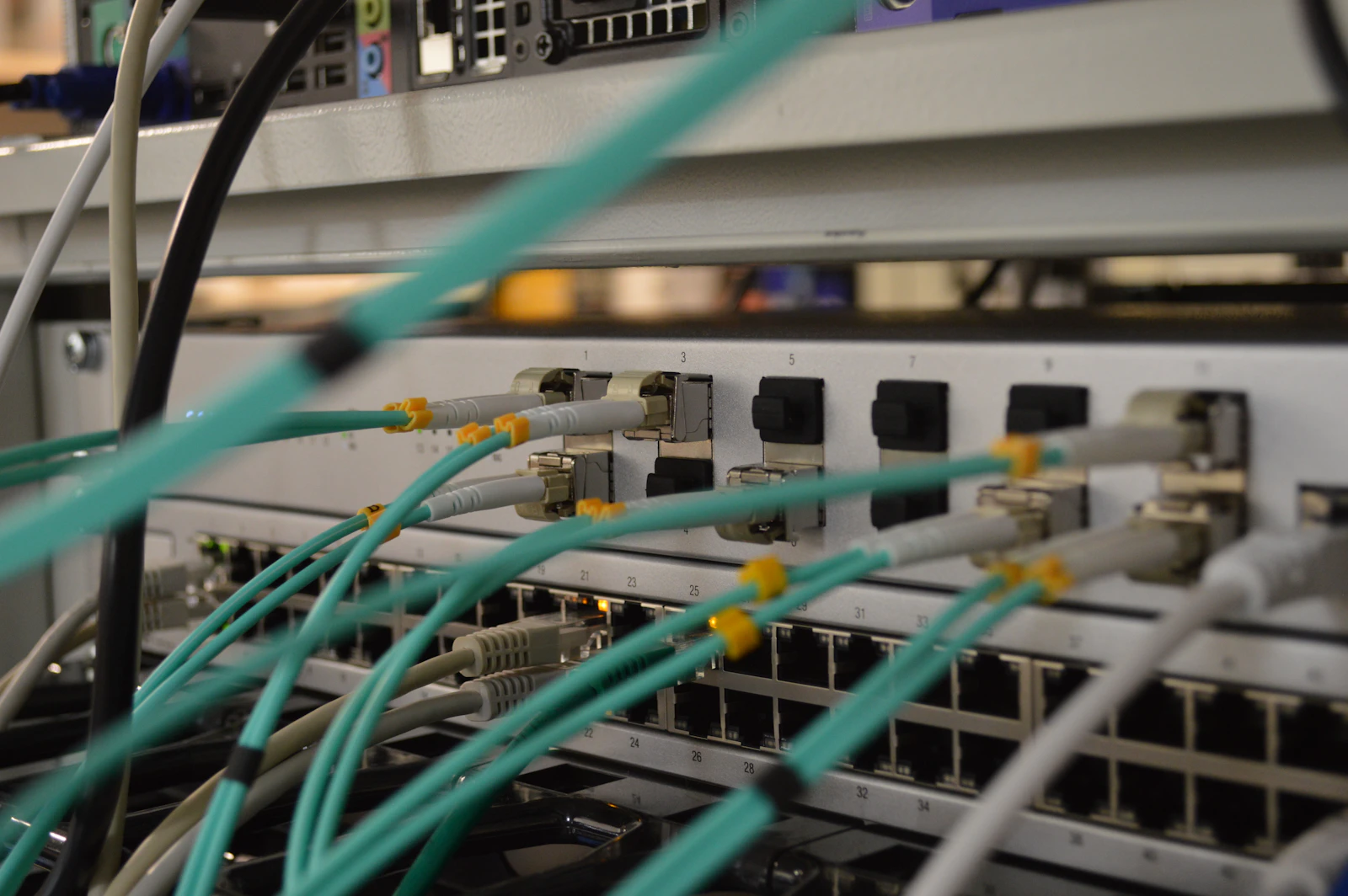

Rack layout, cable management and cooling
Place patch panels next to the switches they serve, use short patch cords and horizontal cable managers, and keep airflow paths clear. Rack rooms in Dubai overheat easily in summer, and in some towers the central air conditioning runs to a schedule, so a small comms room can get very hot over a weekend. Plan dedicated cooling rather than relying on the office AC.
What are the most common office cabling mistakes, and when should you recable?
Most cabling faults come from installation shortcuts rather than the cable category. Recable when the existing system is undocumented, fails testing or cannot support the network you now need.
- Running data cable tightly alongside power cables instead of separating them and crossing at right angles.
- Over-bending cable, or crushing it with cable ties pulled tight.
- Horizontal runs close to or beyond the 90 m permanent link limit, or long coiled patch leads.
- Mixing categories, such as CAT6 patch cords on a CAT6A system, which limits the whole channel.
- No spare capacity, leading to small desk switches daisy-chained under tables.
- No labels, no port map and no test results.
Signs it is time to recable
Consider recabling if the office still runs CAT5e or unknown cable, links fail certification, you are upgrading to multi-gigabit access points, or a fit-out is opening the ceilings anyway. Recabling during a fit-out is far less disruptive than doing it around working staff.
How Listonics helps with structured cabling
Listonics designs and installs structured cabling for offices across Dubai, for offices of roughly 5 to 200 staff. We start with a free site survey, then provide a fixed-scope, itemised proposal covering CAT6 or CAT6A runs, fibre backbone, containment, racks and patching.
Our engineers work with your fit-out contractor and building management on approvals, then label and certify every link. At handover you receive the test results, a port map and a network diagram. Because we also handle office network and Wi-Fi, the cabling is planned around your switches and access points from the start. To arrange a survey, contact Listonics.
Frequently asked questions
Yes, if the office only needs 1 Gbps to desks and short runs. CAT6 supports 1 Gbps to 100 m and 10GBASE-T to about 55 m. For a longer lease, multi-gigabit access points or heavy PoE use, CAT6A gives more headroom and avoids recabling later.
Copper Ethernet channels are limited to 100 m in total. That is normally split into a permanent horizontal link of up to 90 m, plus up to 10 m of patch cords across both ends. Longer distances, such as between floors or buildings, should use fibre.
They will usually connect, but the channel is only as good as its weakest component. CAT6 patch cords on a CAT6A system can stop links from reaching CAT6A performance at 10 Gbps. Use patch cords and jacks of the same category as the installed cable.
In most towers, yes. Work in ceiling voids, risers and shared areas usually needs approval, with method statements and contractor details submitted first. Some buildings also restrict working hours. Check your landlord's fit-out rules before booking installers so approvals do not delay move-in.
A certification report shows each link was tested against CAT6 or CAT6A performance limits, not simply checked for continuity. It gives you evidence the installer delivered what was quoted, helps diagnose faults later and is often needed for a cable manufacturer's system warranty.
Yes. Putting access points, cameras and access control on the same structured system keeps everything labelled, tested and patched in one rack. Plan their ceiling and wall points at design stage, as adding PoE devices later often means extra cable runs through finished ceilings.
